Description:
The AT24C256C provides 262,144 bits of Serial Electrically Erasable
and Programmable Read-Only Memory (EEPROM) organized as 32,768
words of 8 bits each. The device’s cascading feature allows up to
eight devices to share a common 2‑wire bus. The device is optimized
for use in many industrial and commercial applications where
low‑power and low‑voltage operation are essential. The devices are
available in space‑saving 8‑lead SOIC, 8‑lead TSSOP, 8‑pad UDFN and
8‑ball VFBGA packages. All packages operate from 1.7V to 5.5V.
Standard Features
• Low-Voltage and Standard-Voltage Operation:
– VCC = 1.7V to 5.5V
• Internally Organized as 32,768 x 8 (256K)
• Industrial Temperature Range: -40°C to +85°C
• I2C-Compatible (2-Wire) Serial Interface:
– 100 kHz Standard mode, 1.7V to 5.5V
– 400 kHz Fast mode, 1.7V to 5.5V
– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• Write‑Protect Pin for Full Array Hardware Data Protection
• Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA
maximum)
• 64-Byte Page Write Mode:
– Partial page writes allowed
• Random and Sequential Read Modes
• Self‑Timed Write Cycle within 5 ms Maximum
• ESD Protection > 4,000V
• High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
• Green Package Options (Lead-free/Halide-free/RoHS compliant)
• Die Sale Options: Wafer Form and Bumped Wafers

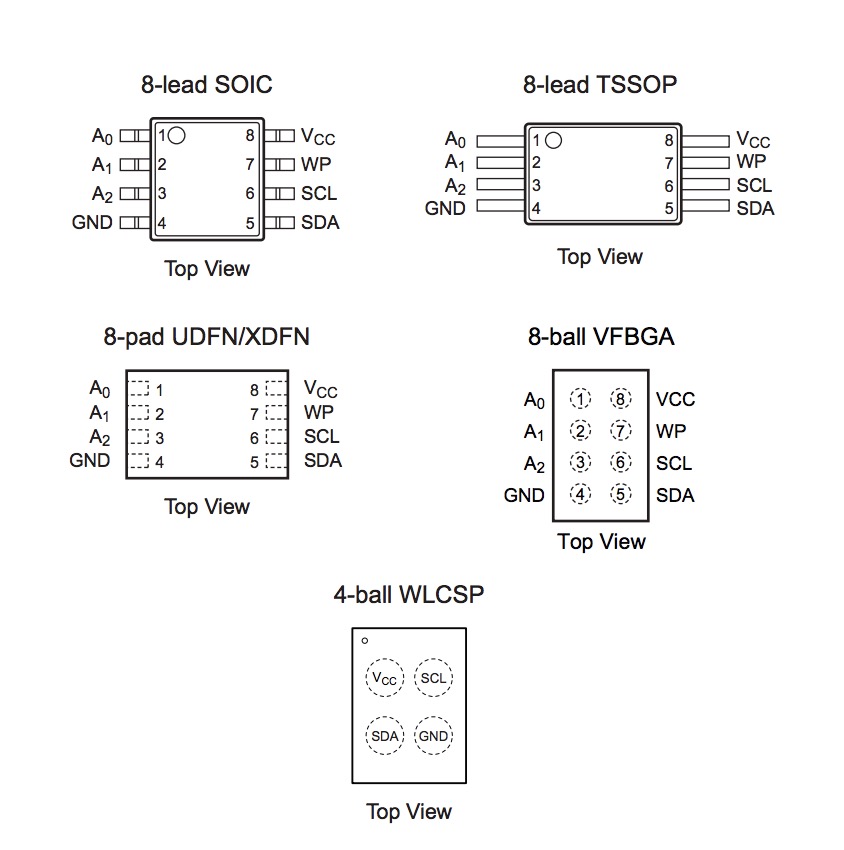

Pin Function
A0: Address Input
A1: Address Input
A2: Address Input
GND: Ground
SDA: Serial Data
SCL: Serial Clock Input
WP: Write Protect
VCC: Device Power Supply
AT24C128C, 128K Serial EEPROM: The 128K is internally organized as
256 pages of 64-bytes each. Random word addressing requires a
14-bit data word address.
Applications
Computers & Computer Peripherals, Industrial, Commercial
